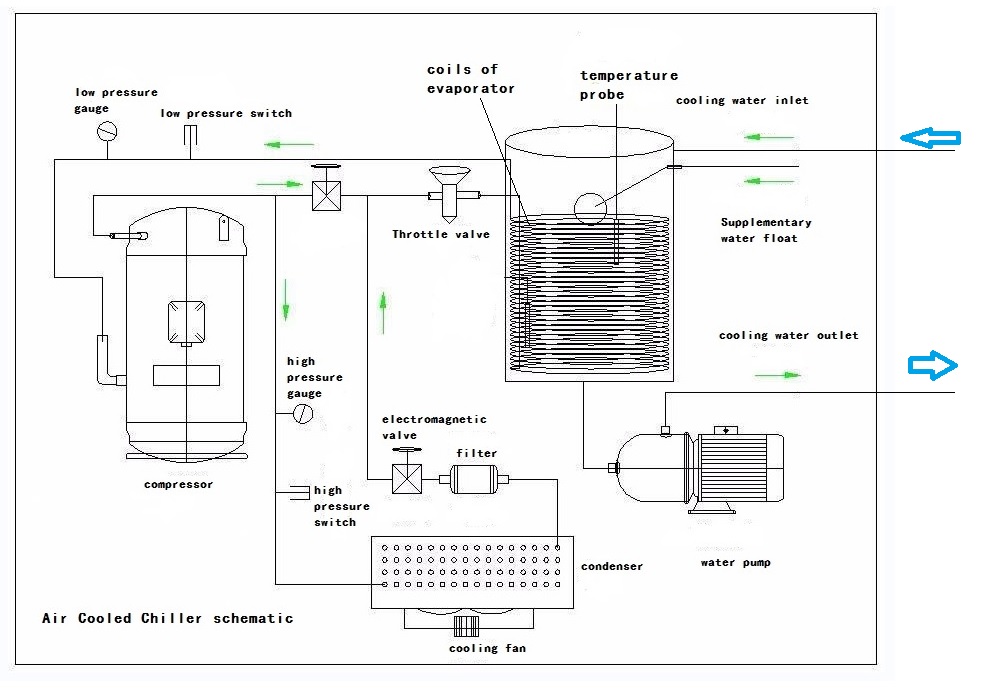

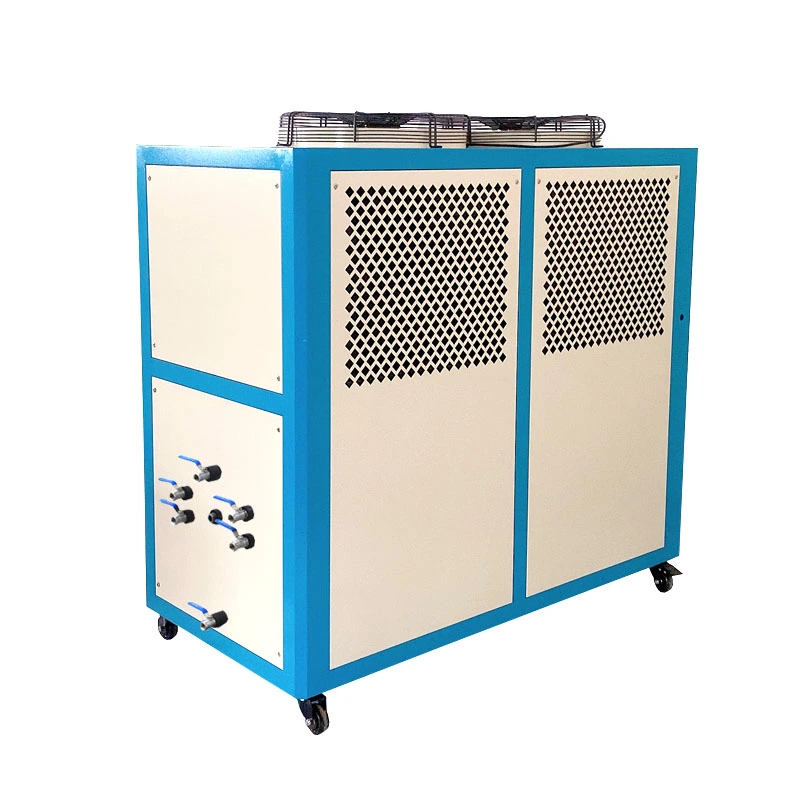

Air Cooled Water Chiller working principle:
Air Cooled Water Chiller Main components: compressor,evaporator,condenser,cooling fan,and water pump.
The liquid that the customer needs to cool arrives in the chiller water tank,
and the coil in the water tank cools the liquid and transports it back to
the equipment that the customer needs to cool through the water pump.
It needs to be noted here that the evaporator of the Air Cooled Water Chiller can be divided into two types,
one is the water tank coil type, and the other is the shell and tube type.
If you want to know the difference, you can read the article in the link below:
Technical Parameter | ||||||
1.Model | MO-03A | MO-04A | MO-05A | MO-06A | MO-08A | MO-10A |
2.Cooling capacity | 7.5 KW | 10.8KW | 14.4KW=4TON | 18 KW | 20KW | 28.01KW |
6,459 Kcal/h | 6,459 Kcal/h | 12,401 Kcal/h | 15,000 Kcal/h | 17,224 Kcal/h | 24,089 Kcal/h | |
3.Temperature range | 5~25 ℃ (This is standard temperature range,If you need to customize other temp., you can consult email:morimachinery@163.com) | |||||
4.Voltage | 3phase/ 380v/ 50hz (This is standard voltage,If you need to customize other voltages, you can consult email:morimachinery@163.com) | |||||
5.Total power | 3.28KW | 4.03KW | 4.86KW | 5.61KW | 8KW | 9.9KW |
6.Compressor | Type:Hermetic Scroll Type or Piston | |||||
Power:2.2kw | Power:3kw | Power:3.75kw | Power:4.5kw | Power:6kw | Power:7.5kw | |
Refrigerant:R407C (If you need to customize other refrigerant, you can consult email:morimachinery@163.com) | ||||||
7.Cooling fan | Air volume：4000m³/h | Air volume:6000m³/h | Air volume:12000m³/h | |||
Power: 0.27kw | Power: 0.27kw | Power: 0.36kw | Power: 0.36kw | Power: 0.84kw | ||
8.Condenser | Efficient brass sets corrugated aluminum fin | |||||
9.Evaporator | Type:Tank + Copper Coils | |||||
Inlet and outlet port:G1 ‘’ | Inlet and outlet port：G1-1/2 ‘’ | |||||
10.Tank | 30Liters | 100Liters | ||||
11.Pump | Power: 0.75kw | Power: 1.2kw | ||||
12.Size | 116x60x122cm | 136x63x145cm | 155x76x156cm | |||
13.Weight | 231kg | 294kg | 413kg | |||
